Description
The L1600D offers the purest of light, and a lot of it, with the highest degree of light shaping possibilities. We have created an impressively efficient piece of equipment with our Mono-LED technology. 97% of the electricity is harnessed and used from input to output, which is only a quarter of the loss compared to solutions with ballast and head.
The L1600D is for the uncompromising pros who appreciate and understand the power of shaping light to achieve their cinematic visions.
Technical specifications
| Product number | |
| Profoto L1600D | 902010. |
| Light fixture | |
| Color temperature | 5600K. |
| Diming | EXP, LOG, Linear. 0.1%-100%, with super low dimming. |
| Flicker | Flicker free at any frame rate. |
| TLCI/CRI | 97. |
| SSI | 77. |
| Max power consumption | 1600W. |
| Power draw | Integrated auto current draw limit is 15A at low input voltage. |
| Power supply | Integrated, worldwide 100-240v 50-60Hz (e.g.1 phase “230v50hz,2-phase- 208v60hz, 1-phase 120v60hz, 240v split phase). |
| Mains | Neutrik powercon connector, 7m cable. |
| Cooling | HydroCTech™ Liquid Cooling System (patent pending). |
| Fans | 2x140mm silent fans. |
| IP rating | IP54. |
| Connectivity | |
| Lumen radio/CRMX | TimoTwo integrated. |
| DMX | XLR 5pin in/out, integrated software controllable termination. |
| Bluetooth | Profoto control app, Lumenair app, Blackout app. |
| Profoto Air Radio | Remote control range 100m. |
| USB | USB-C (Service). |
| Measurements & weight | |
| Light including swivel yoke | 11,7kg/25,8lb. |

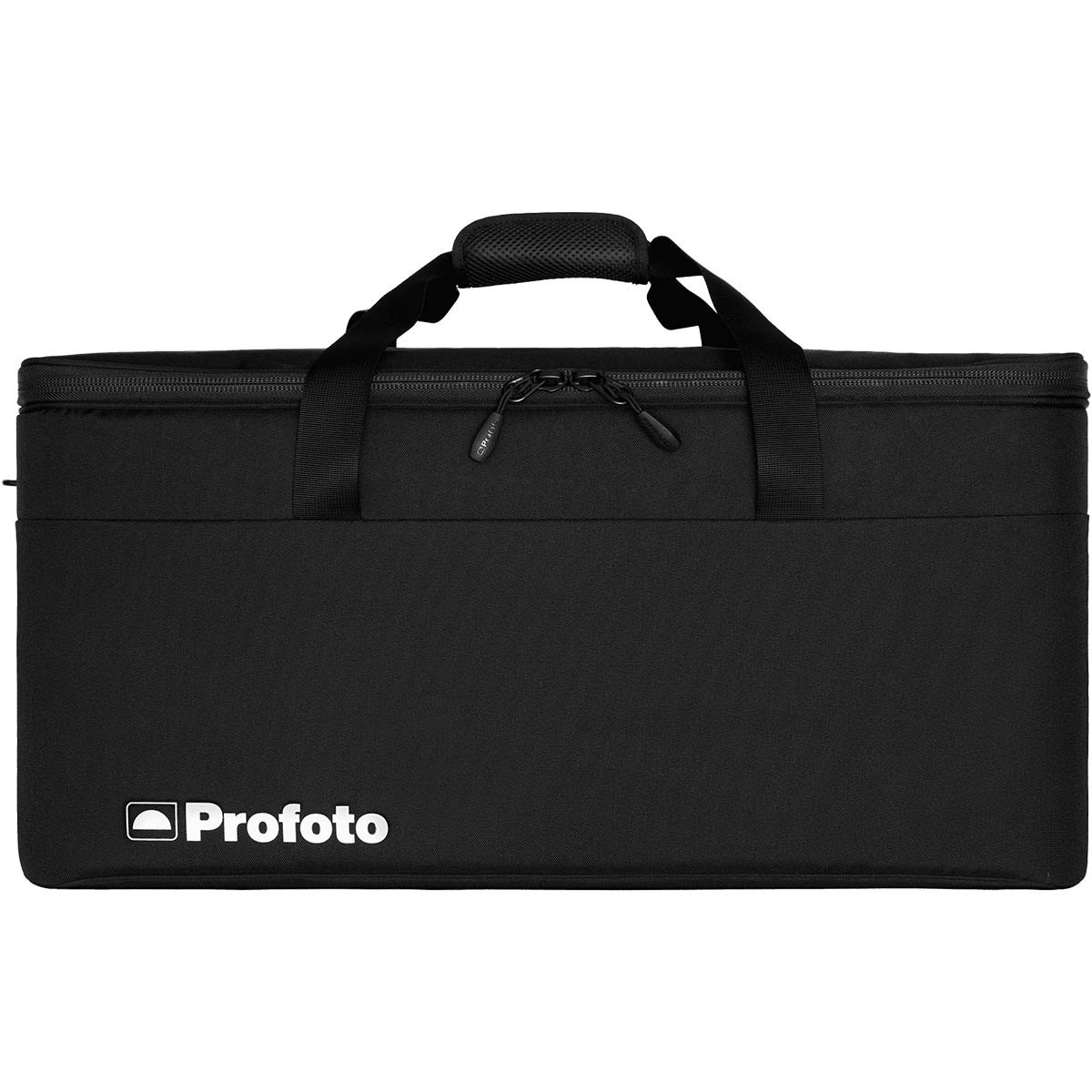

| Light, swivel yoke, mains cable, Boost reflector and transportation bag. | 14kg/30,8lb. |
| Length with built in reflector
Length with Profoto mount Length with Boost reflector |
50cm/19,6in
60cm/23,6in 85cm/33,4in. |
| Width | 26cm/10,2in |
| Height | 29/11,4in. |
|
Other |
|
| Storage temperature | -30 to +60°C/-22 to 140°F. |
| Operating temperature
Full functionality Limited functionality |
-10 to +35°C/14-95°F. +36 to +50°C/96-122°F. |
| Photometric data | |||
| With Boost reflector 12° | |||
| Distance m/ft | Output [ lux] | Diameter (m/ft) | |
| 5/16,4f | 49000 |
|
|
| 7/35 | 25400 |
|
|
| 10/33 | 12200 |
|
|
| 15/49 | 5480 |
|
|
| With built in wide reflector 60° | |||
| Distance m/ft | Output [ lux] | Diameter (m/ft) | |
| 5/16,4 | 3850 | 5,6/18,3 | |
| 7/35 | 2160 | 7,5/24,6 | |
| 10/33 | 1130 | 11/36 | |
| 15/49 | 670 | 16,5/54,1 |
